Matek 5.8G 40CH 25/200/500mW switchable Video Transmitter

Matek 5.8G 40CH 25/200/500mW switchable Video Transmitter

Regular price
$55.90
Regular price
Sale price
$55.90
Unit price
per
Availability
Sold out

Specifications & Features

Input voltage: 7~27V(2~6S LiPo)
40 standard channels, A/B/E/F/R Band
Output Power: 25, 200, 500mW switchable
BEC Output: 5V/1A for Camera or FC

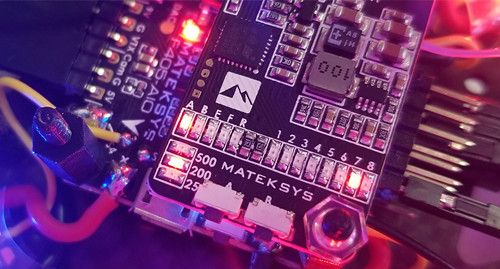

Traditional button+LED control of frequency and power
BFCMS control via FC UART _TX
Firmware upgradeable
Power Consumption: 3.1W Max. @ 500mW
Video Input Impedance: 75 Ohm
Audio Subcarrier Frequency: 6.5 MHz

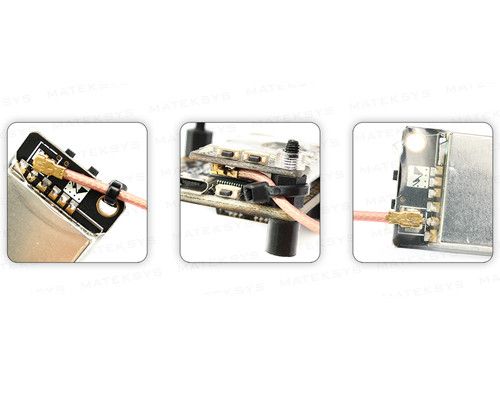

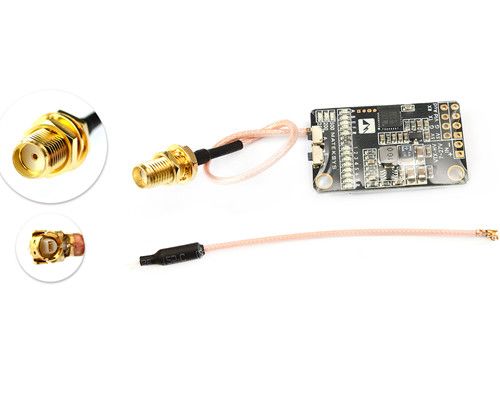

RF Connector: U.FL (IPEX)
Video Format: NTSC/PAL
Weight: 6g (Tx only, w/o SMA cable)

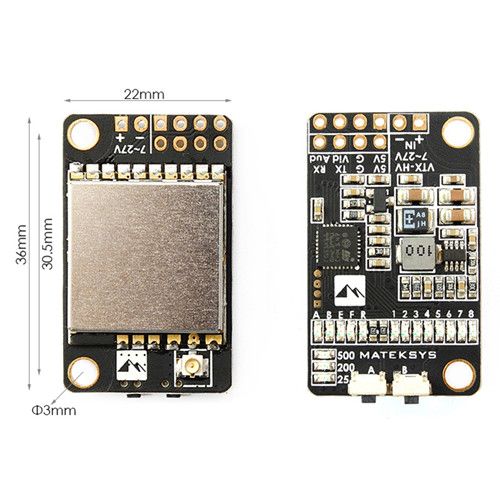

Size: 36*22*6.5mm w/30.5mm mounting
