Matek System F411-One 30.5x30.5mm F4 Flight Controller With FrSky Rx
Matek System F411-One 30.5x30.5mm F4 Flight Controller With FrSky Rx

Matek System F411-One 30.5x30.5mm F4 Flight Controller With FrSky Rx

Regular price
$74.90
Regular price
Sale price
$74.90
Unit price
per
Availability
Sold out

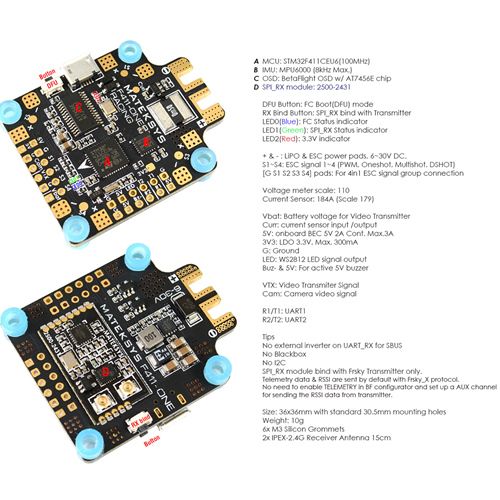

Brand Name: Matek System
Model: F411-One
Item Name: 30.5x30.5mm F4 Flight Controller AIO OSD BEC and Current Sensor
MCU: 100MHz STM32F411CEU6
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
SPI RX: module 2500-2431, Frsky_X or Frsky_D protocol
VCP, UART1, UART2
WS2812 Led Strip : Yes
Beeper : Yes
PPM: RX2 pad
Blackbox: No
SBUS input: No
I2C1 SDA & SCL: No
Input: 6~30V (3~6S LiPo) w/TVS protection
PDB: 4x30A (Max.4x46A)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.300mA
Current Sensor 184A (Scale 179)
Battery Voltage Sensor: 1:10 (Scale 110)
